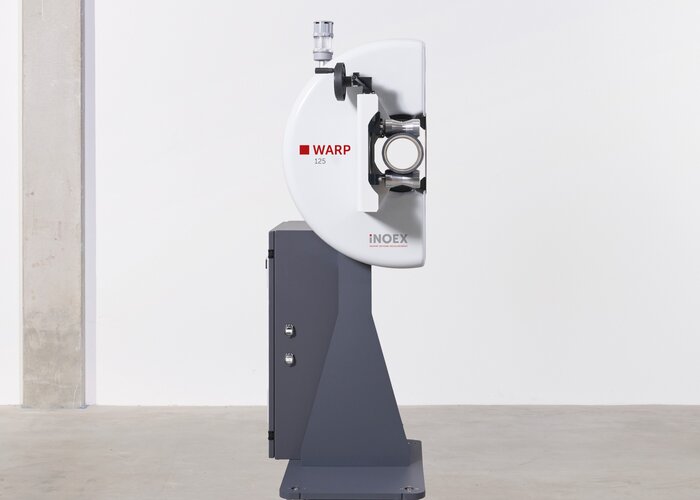

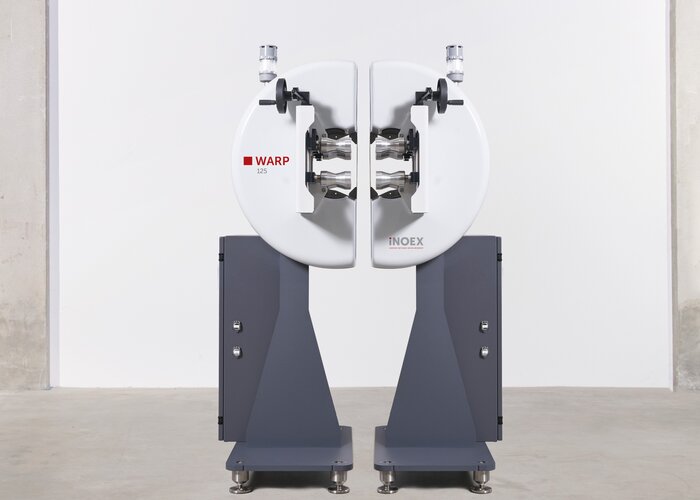

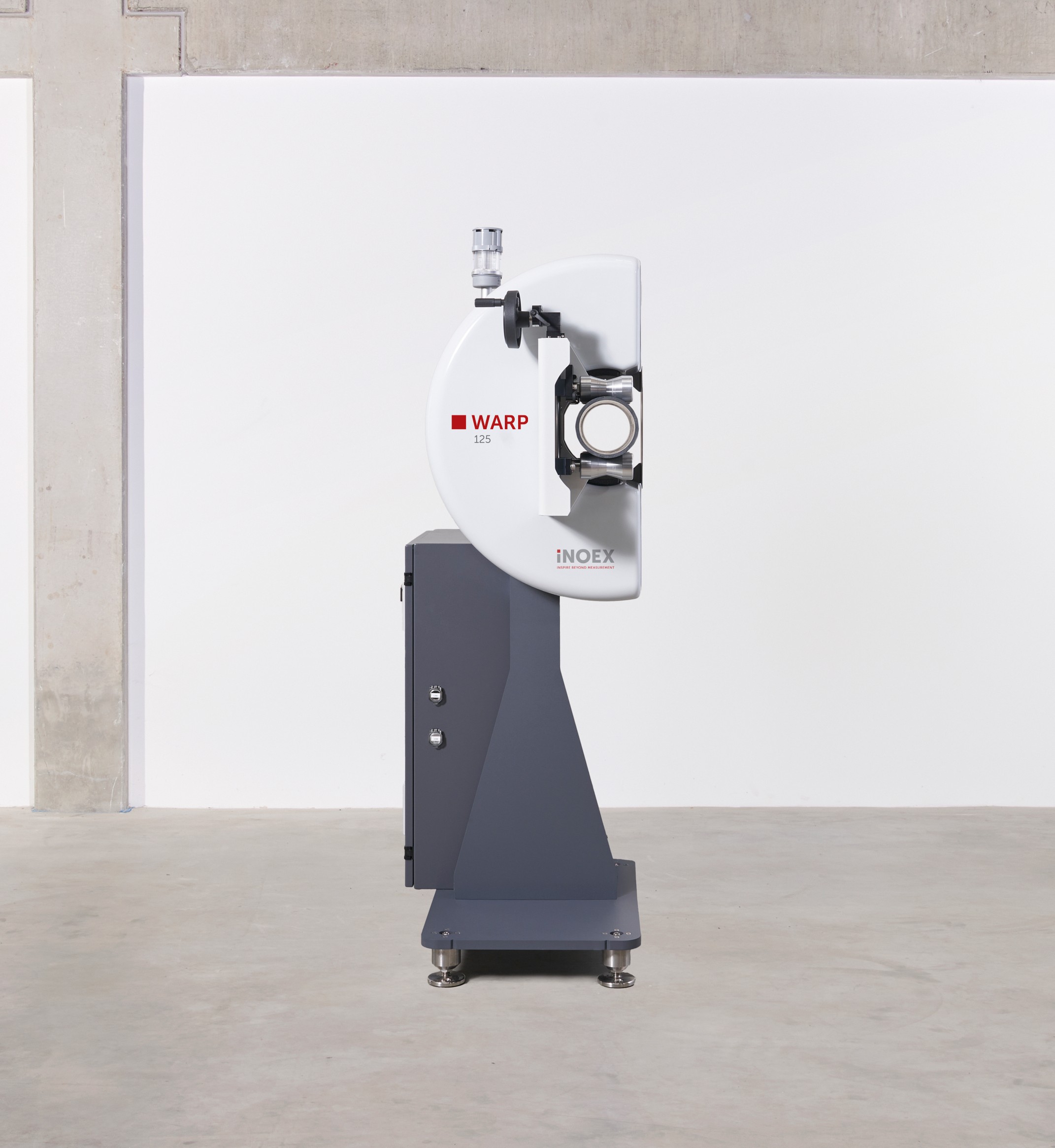

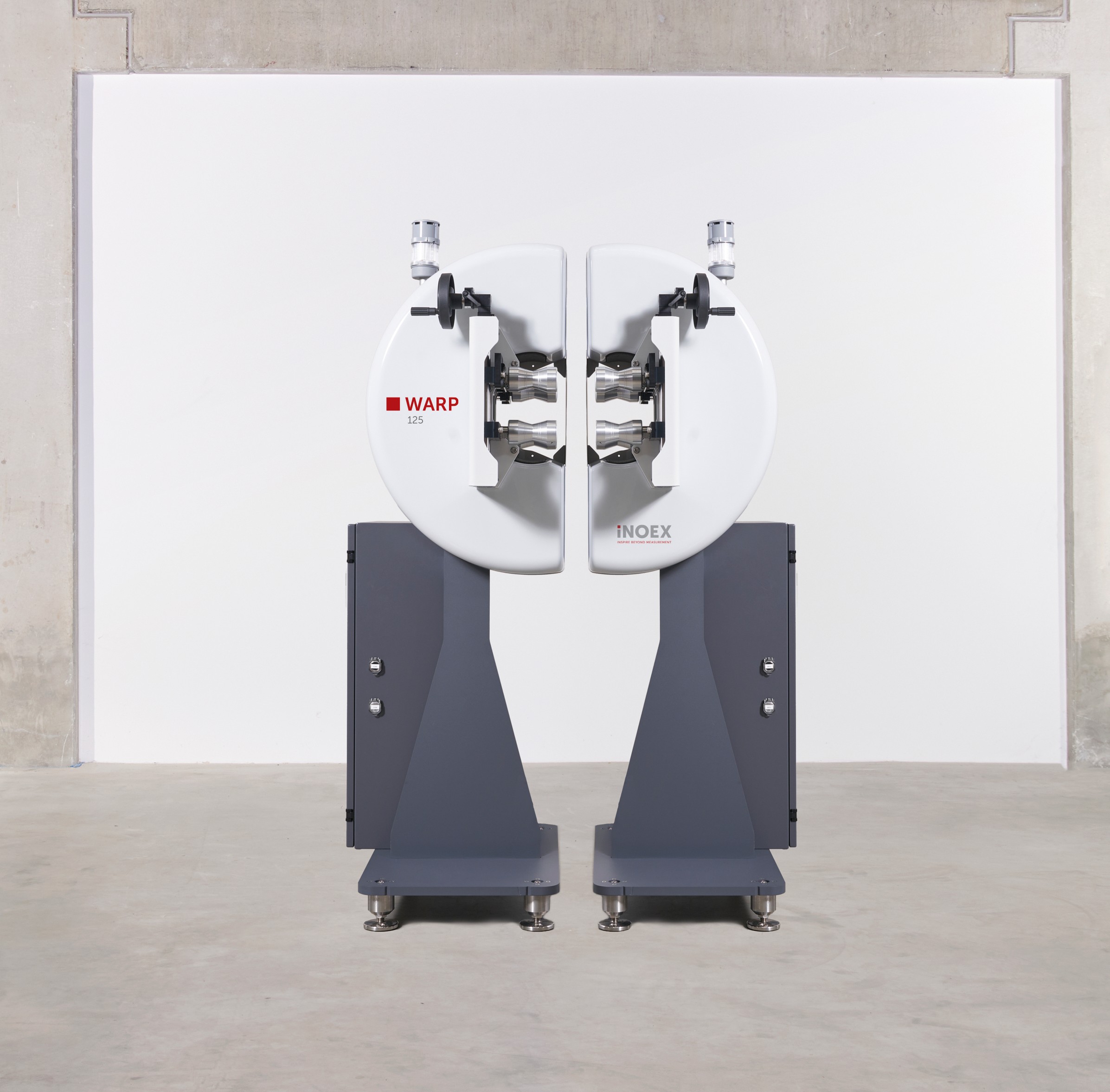

Radar
Radar technology relies on intelligent sensor technology based on FMCW microchips, with the wave being generated purely electronically on the chip. This allows non-conductive materials such as plastic to be tested non-destructively and without contact. The speed of the wave in plastic is slower compared to air and can vary between different materials. This difference in speed causes partial reflections of the incoming wave at the material transition. The travel time of these reflected echoes allows the wall thickness of the layer to be determined. In this way, radar sensor technology can be used to determine geometry properties such as wall thickness, pipe diameter and ovality, as well as material properties such as permittivity and carbon black content. iNOEX has reinvented the core of radar, the radar technology itself, with the associated precision electronics and optics, and adapted it to the needs of the plastics market. The radar technology can be used with all common plastics such as PE, L-/HDPE, PP, PA6/-12, PVC, PVDF, etc. without any limitations in measurement accuracy. The measuring accuracy is ±0.05 mm. Since no coupling medium is needed to emit and receive the radar waves, this application is very robust, reliable, and independent of process fluctuations.

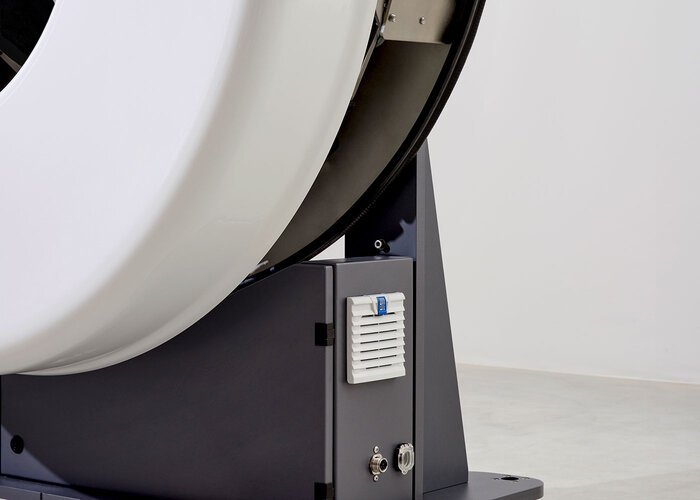

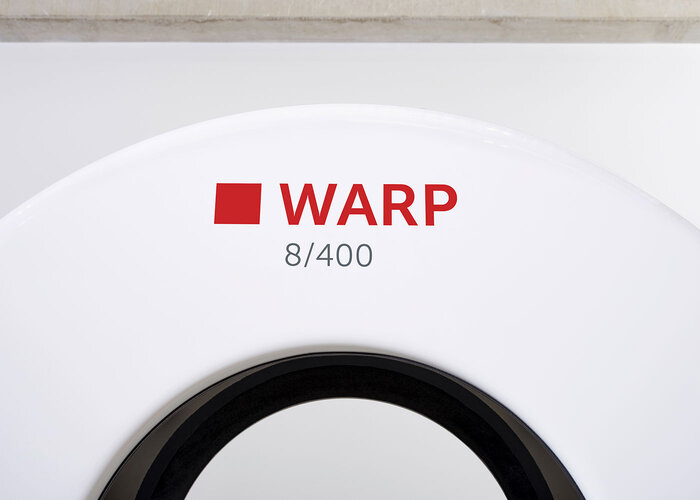

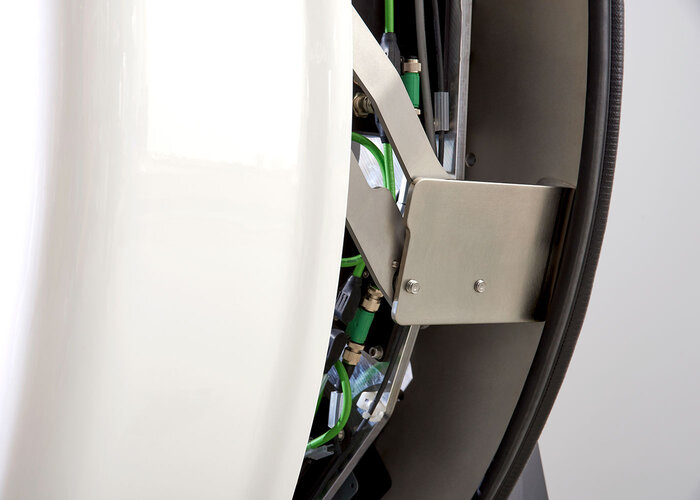

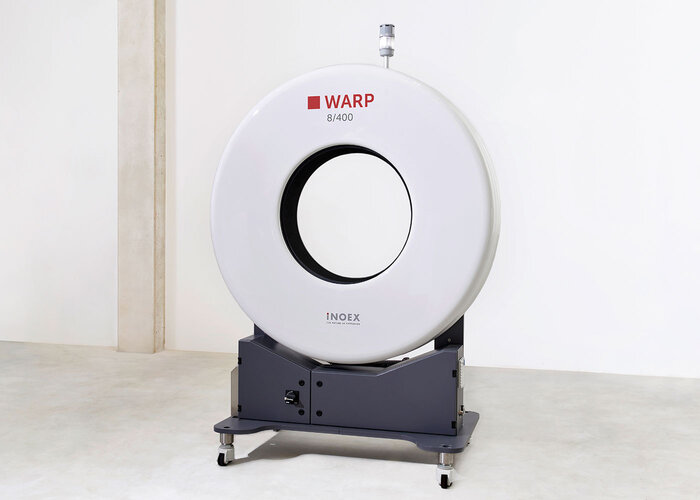

The WARP 8 is an inline pipe measuring system for wall thickness and diameter measurement at 8 points or 4 axes. It provides all important measurement data required for manual or automated process optimization and control. In addition to the short return-of-invest time, the system offers high measurement accuracy as well as process automation and documentation functions. The static sensors allow a high resolution of the measured values in the extrusion direction. Thus, process fluctuations are precisely recorded and visible, so that effects such as short-term fluctuations in output or backpressure effects during the sawing process can be detected and eliminated. The WARP 8 specializes in large wall thicknesses and diameters and offers a particularly wide range of applications.

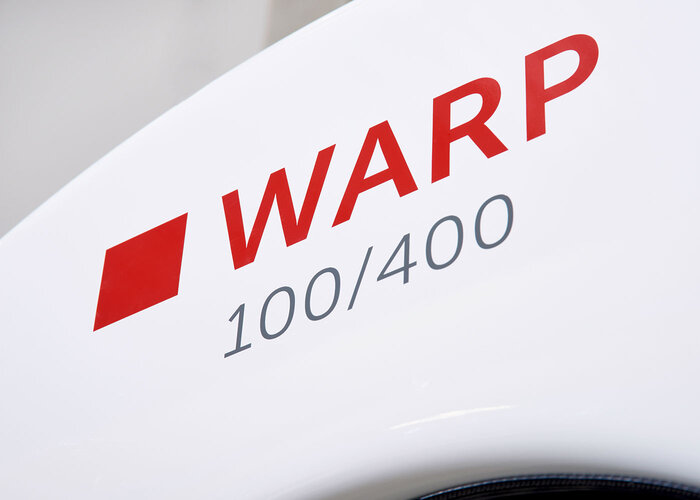

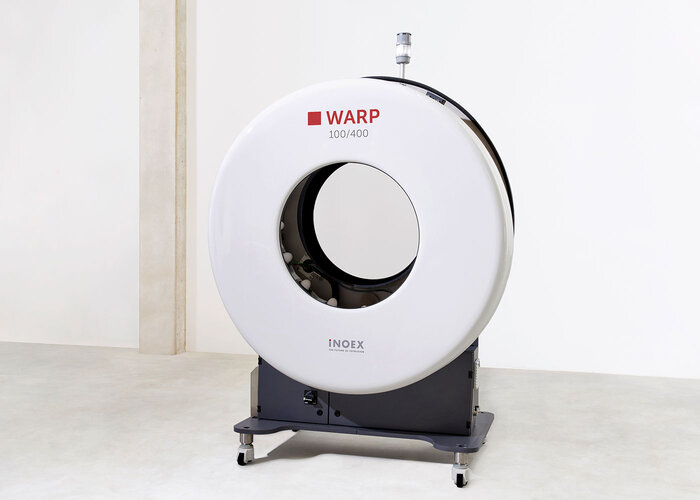

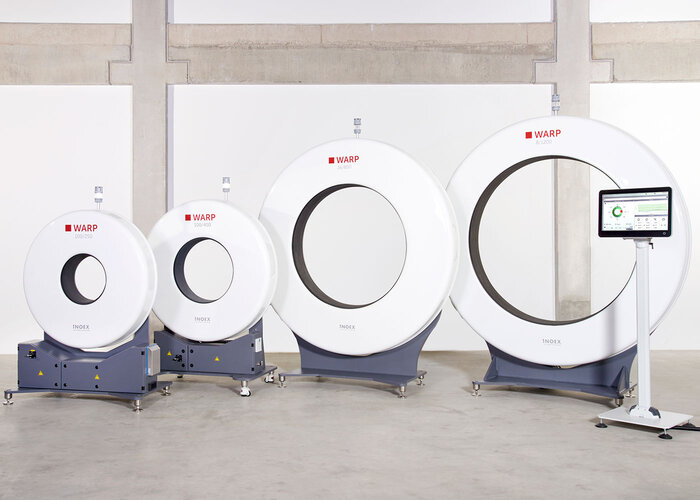

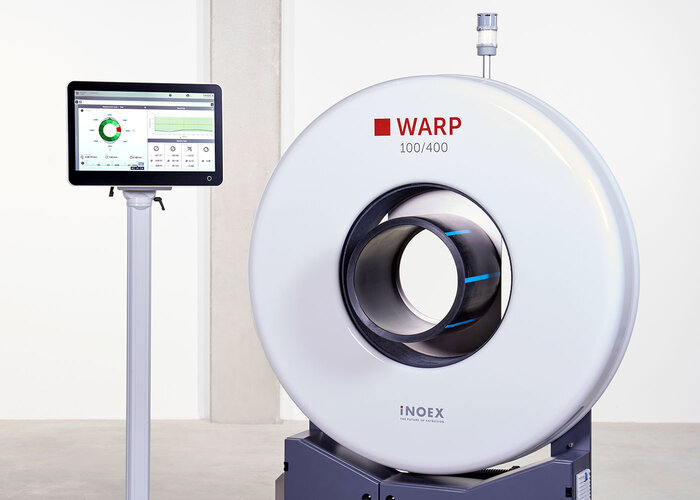

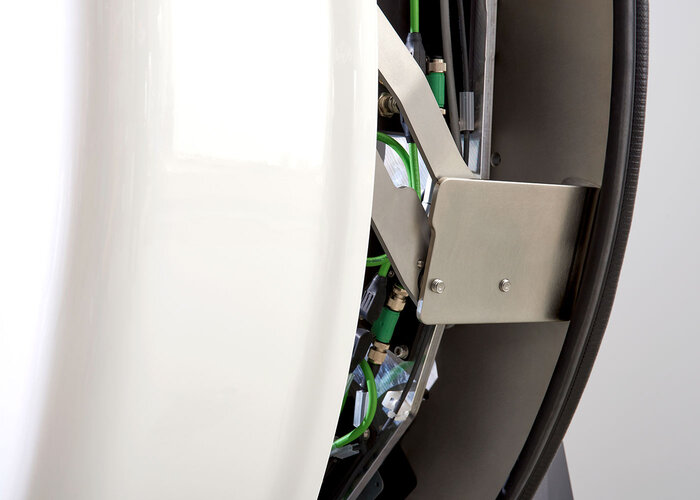

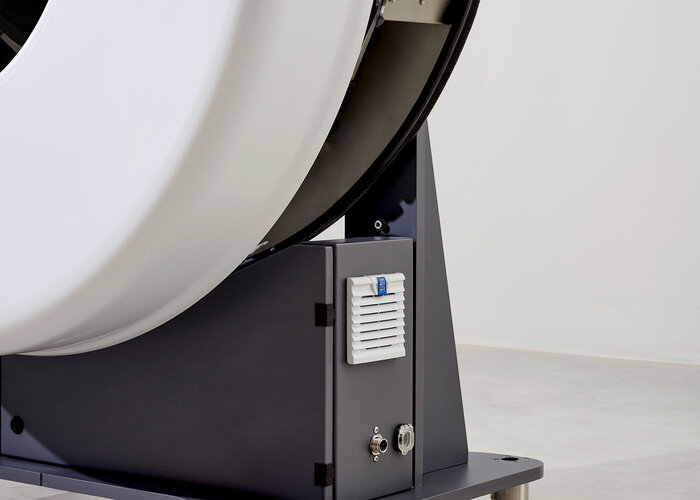

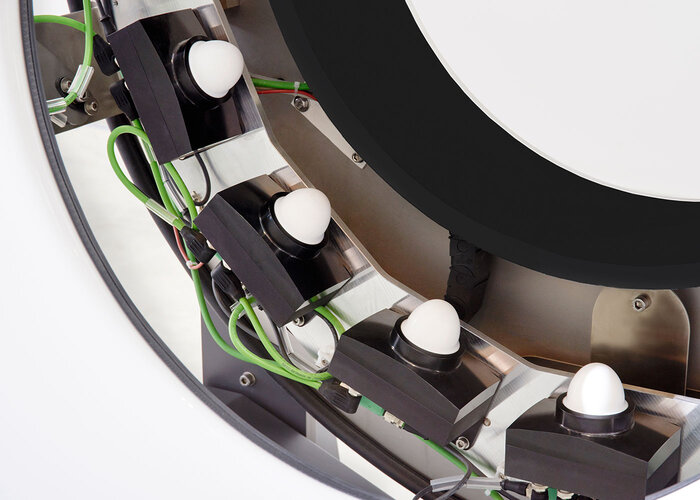

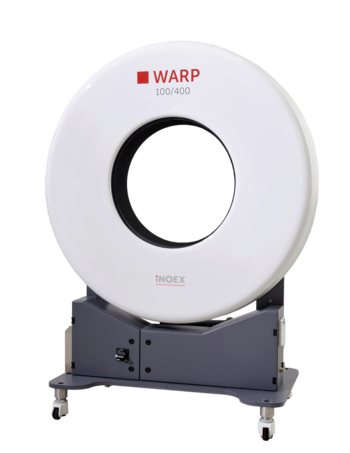

WARP 100 is an inline pipe measuring system for wall thickness and diameter measurement at up to 38 measuring points and 19 axes. More than 1100 measurements per second guarantee a gapless measurement. This is particularly important for pipes with high quality requirements, such as pressure or gas pipes. The maximum line speed for 100% coverage is up to 11.8 m/min. WARP 100 is available in three sizes and can be used for measurement in the diameter range from 25 to 630 mm. The static sensors are distributed around the pipe and continuously measure the pipe in parallel. The specially developed optics allow the alignment of the radar wave to be focused on the centre of the pipe. The sensors are arranged in such a way that the measuring spots overlap, thus ensuring close-meshed coverage in the extrusion direction. Measured variables such as wall thickness, diameter, ovality, eccentricity as well as process conditions (e.g. sagging) are precisely recorded, documented, and further used for automatic process control.
The WARP CP is an inline measuring system with radar-based wall thickness sensors for detecting the various structures of a corrugated pipe. Outer and inner diameters, as well as the wall thicknesses of the bell, crest, liner, and valley can be resolved. The system is available for large, corrugated pipes with diameters from 300 mm.
The 8 sensors around the corrugated tube scan it continuously. Since the corrugated tube has different structures, it is therefore necessary to assign the measurement data to the corresponding position on or in the tube. The WARP-CP algorithms do this automatically and prepare the data for the user in such a way that he receives different graphics and corresponding measurement data for each structure.

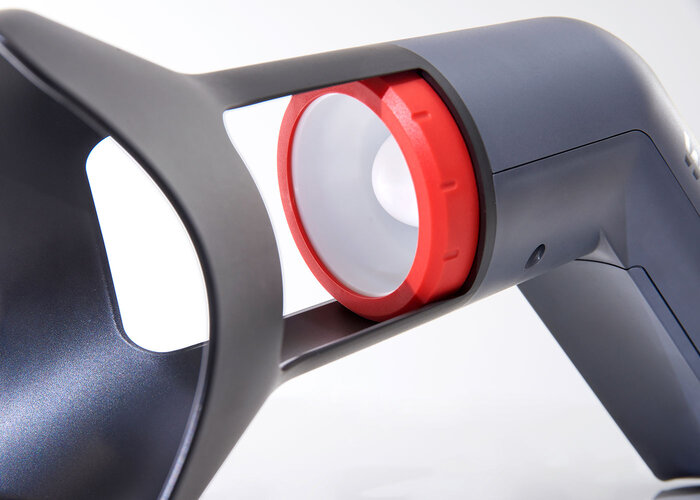

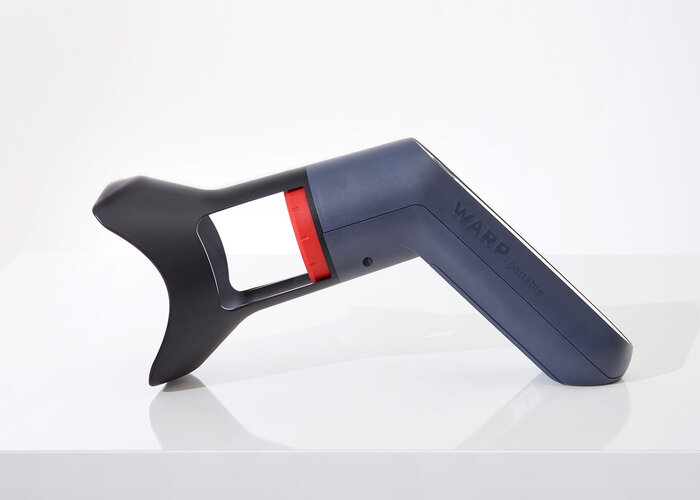

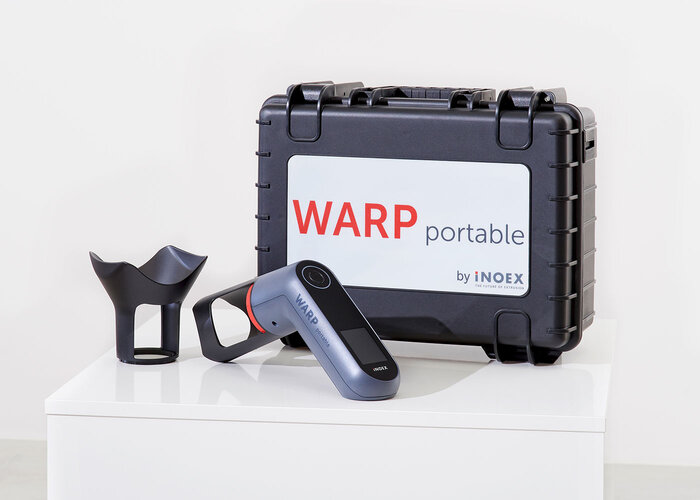

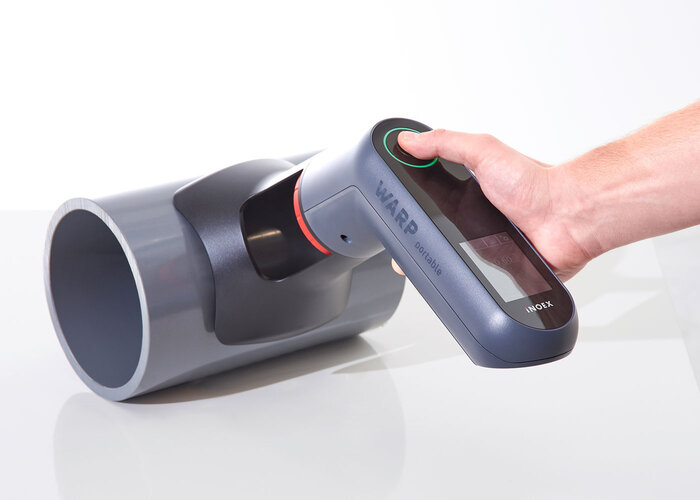

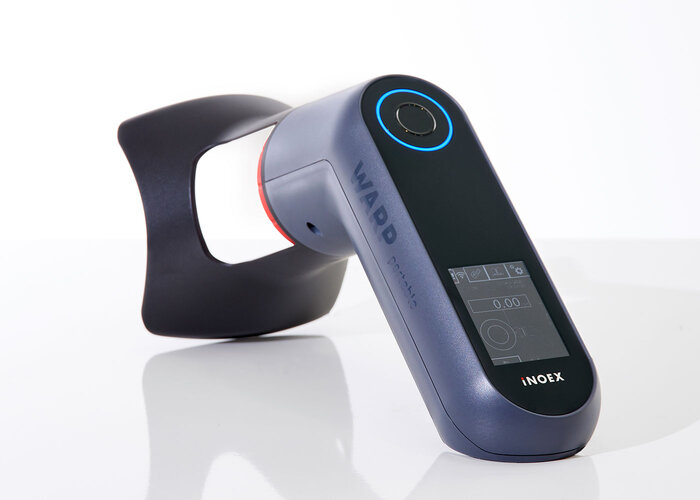

The WARP portable is a mobile, radar-based hand-held gauge for selective wall thickness measurement, specially designed for medium and large pipe extrusion as well as for sheets. The application possibilities are very flexible, whether as a quick centering aid in the start-up process, for final production control or as a stock control device. Not only wall thicknesses at pipe ends can be measured, but also the progression inside a pipe section or a sheet. The measurement itself is performed at the push of a button. The last 500 measured values including the measuring angle on the pipe as well as the time stamp are stored.
Over 400 WARP portable sold speak for themselves.
Our sales team is available to you as a competent partner for individual advice at any time.
