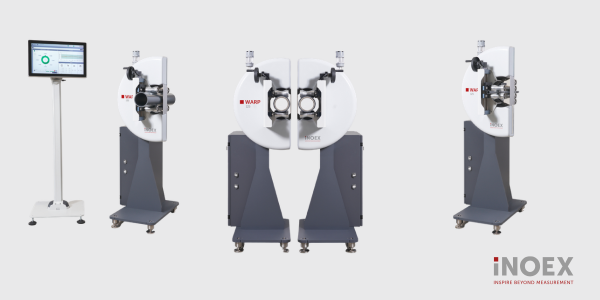

With WARP 125, iNOEX introduces a compact radar measurement system for mono and dual-strand extrusion lines that is precisely tailored to the demands of modern pipe production: precision, efficiency, flexibility, and cost-effectiveness. After its successful premiere at the K trade fair 2025, the system is now officially available.
Technology and Measuring Performance
WARP 125 uses 8 measuring points around the pipe circumference to capture wall thickness distribution, inner and outer diameter, ovality, and eccentricity. With a measuring range of 25 to 125 mm outer diameter and wall thicknesses from 2 mm, it covers applications from standard to specialty pipes. A measuring frequency of 108 Hz and proven iNOEX radar technology ensure continuous and reliable process monitoring.
Focus on Cost-Effectiveness
Thanks to a “Design to Cost” approach, WARP 125 offers a cost-efficient entry into high-end radar technology. Its compact design reduces space requirements and simplifies integration into confined production environments—particularly attractive for companies modernizing or expanding their lines.
Flexible and Expandable
The modular design allows WARP 125 to be adapted to individual production needs and expanded with gravimetrics, thermal pipe head centering, and iNOEX control loops. Operation via intuitive WebIQ software on a 21” terminal enables simple handling and central control of complex processes. Maintenance and adjustments during ongoing production minimize downtime and increase system availability.
Application Spectrum and Customer Benefits
From water and sewage pipes to specialized industrial pipes, WARP 125 supports seamless quality control and process optimization through precise measurement and documentation of all relevant parameters. It directly addresses typical industry pain points such as inaccurate measurements, complex operation, and high maintenance costs—making it a robust, future-proof investment.
WARP 125 radar measurement system from iNOEX stands for a new generation of inline measurement technology: precise, flexible, cost-effective, and future-proof. Companies seeking to take their pipe production to the next level will find a solution that perfectly combines innovation and economic efficiency.
